Description

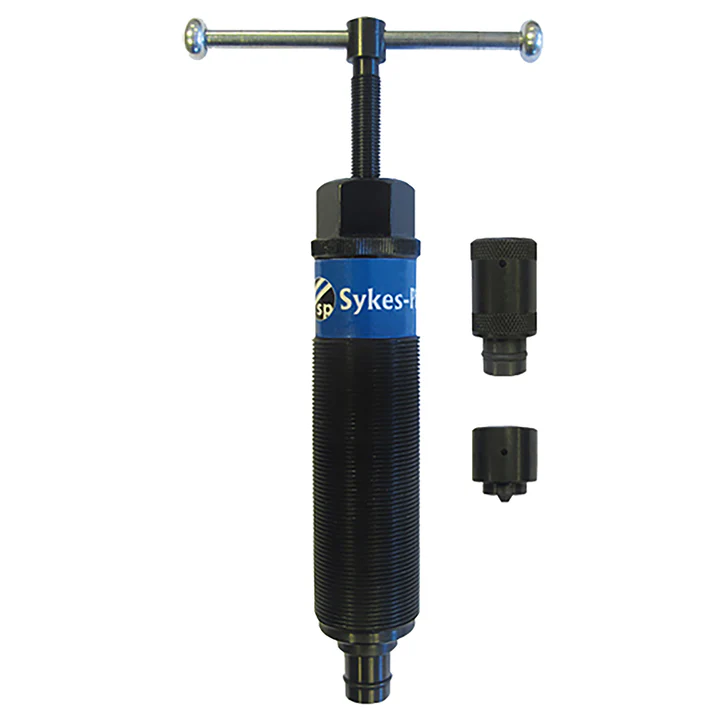

New design includes pre-loading 30mm hex, 2” extension and foam cut out for storage.

• Standard power unit for SP hydraulic pulling options and can also be used with many alternative SP puller applications e.g. 3 leg pullers, ball joint pullers, hub pullers, suspension bush removers etc
• Diameter 1 1/2″
• Thread 16tpi Whitworth
• Grease filled.
• Direct force improves stability under load.
• Provides maximum withdrawal force of 80kN.
• New hex head makes it possible to increase pre-load capability up to 4 tonnes (with the use of a 30mm wrench).
• When hydraulic power is applied, the full force is achieved with little loss of ram travel.
• As the workpiece starts to release, more stroke and power can be applied to ensure a good safe removal.
